LED Drivers-Product Selection
| Operating Voltage (Vcc) (v)
2.5-12V 2.5V-5.5V 2-7.5V 3-20V 3-27V 4.5-15V 4.5-36V 4.5-46V 5.5-35V |
Quiescent Current Iq (Typ) (mA)
0.1uA 1.5A 10mA 10uA 1uA 24mA |
Drive Current Iout (mA)
Drive Current Iout (mA): 1.2A 1.6A 100mA 4A 5A 6A 800mA |
Operating Temperature TA Range (C)
Operating Temperature TA Range (C): 0~70℃ -20~85℃ -40-150℃ |
Package
DIP-16 DIP-8 SOP-8 SOT23-6 ZIP-15 |
Alternative
116 1511 2119 2139 6208 MP6515 A4952 DRV8800 LB1947 MC34923 L298N TB62206.A3968.MTS2916.AMIS30622 TB6552 DRV8210 MP6514 BA6951 LV8417 A3918TEL4207 L TC118 |
| Product image | Model number | Operating Voltage (Vcc) (v) | Quiescent Current Iq (Typ) (mA) | Drive Current Iout (mA) | Operating Temperature TA Range (C) | Package | Alternative |
 |

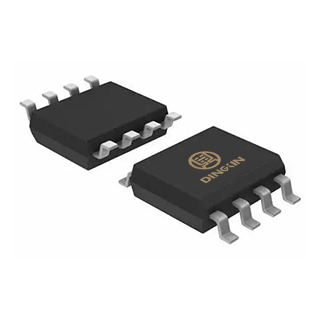

L9110S | 2.5-12V | 0.1uA | 800mA | -20~85℃ | SOP-8 | TB6552 DRV8210 MP6514 BA6951 LV8417 A3918TEL4207 L |
 |

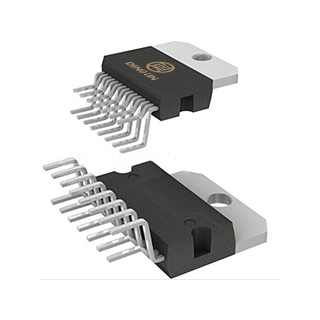

L298N | 4.5-46V | 10mA | 4A | 0~70℃ | ZIP-15 | MP6515 A4952 DRV8800 LB1947 MC34923 L298N |
 |

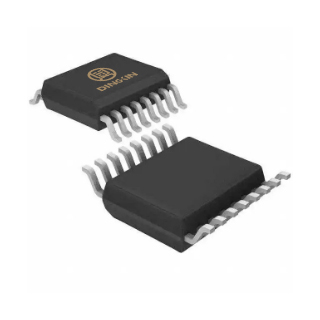

L293D | 4.5-36V | 24mA | Drive Current Iout (mA): | 0~70℃ | DIP-16 | TB62206.A3968.MTS2916.AMIS30622 |
 |
CP6208 | 4.5-15V | 0.1uA | 100mA | -20~85℃ | SOP-8 | 6208 |
 |

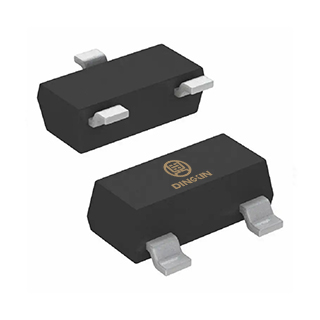

CP116 | 2-7.5V | 0.1uA | 1.2A | -20~85℃ | SOT23-6 | 116 |
 |
CP118 | 2-7.5V | 1uA | 1.6A | Operating Temperature TA Range (C): | SOP-8 | TC118 |
 |

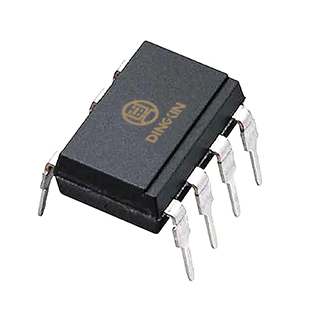

CP2139 | 3-27V | 0.1uA | 6A | -20~85℃ | DIP-8 | 2139 |
 |
CP2119 | 3-20V | 0.1uA | Drive Current Iout (mA): | -20~85℃ | SOP-8 | 2119 |
 |
CP1511 | 2.5V-5.5V | 10uA | 5A | -20~85℃ | SOP-8 | 1511 |
 |
PT4115 | 5.5-35V | 1.5A | -40-150℃ | |||
|
DX-HV9910 |
