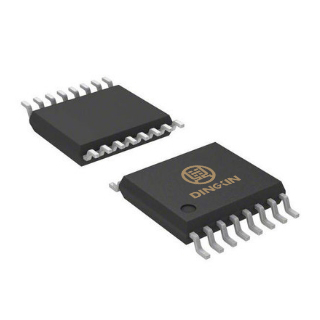

CD40114000 Series

The CD4011 is a quad 2 -input NAND gate.The outputs are fully buffered for the highest noiseimmunity and pattern insensitivity to output impedance.It operates over a recommended Vpp power supply range of 3V to 15 V referenced to Vss(usually ground).Unused inputs must be connected to Vpp, Vss,or another input.

Features

Wide supply voltage range from 3V to 15 V

Fully static operation

5V,10V,and 15V parametric ratings

Standardized symmetrical output characteristics

nputs and outputs are protected against electrostatic effects

Specified from -40C to+105C

Packaging information:DIP14/SOP14/TSSOP1

CD40114000 Series parameter list

Operating Voltage (Vcc) (v):

3-15V

Quiescent Current Iq (Typ):

0.01uA

Operating Temperature Range (℃:

-40~85°C

Package:

DIP-14 SOP-14 TSSOP-14

Alternative:

CD4011 HEF4011 HCF4011

• Power supply
• home appliance
• drone
• floor sweeper
• Medical device
• Multimedia audio power amplifier
• LED lighting
• Toy
• robot
• Instruments and meters
• industrial control
• Automotive Electronics

•
